Updated: How do I safely jack my caravan?

ByRV DailyApril 21, 2020
3 MINUTE READ
Updated: How do I safely jack my caravan?

This is serious stuff. Don’t be gung-ho, or casual. Or a casualty. If you’re asking how do I safely jack my caravan? Here’s how

Any accident with a jack is likely to be nasty. Changing a wheel or tyre is also likely to be in the most unhelpful location and when you’re possibly stressed. Not ideal. People make mistakes when they’re stressed, or not equipped with the right knowledge and the right gear.  There have been reports of some jacks having their lifting mechanism unexpectedly fail, resulting in the jack instantly collapsing – not good. The Caravan Council of Australia’s Colin Young leads us through this safety-conscious scenario.

If you know the correct, safe procedure, then the other causes of jacking accidents are clearly the jack:
(a) Not being completely suitable for that particular caravan, and;
(b) Not having its top positively-located so as to prevent it sliding in any horizontal direction.

So here’s a guide to help you

450 00085 854e0782854159af23162e4c87c24a65

To make a caravan jack safe, it must:

Be approved to the Australian Standard

Have the top positively located:
– by a mating locating recess
– to prevent any horizontal slippage

Be operational for when the caravan is empty and fully loaded

Be positioned on a firm base

Have a sufficient Load Rating

Have a sufficient length of Travel

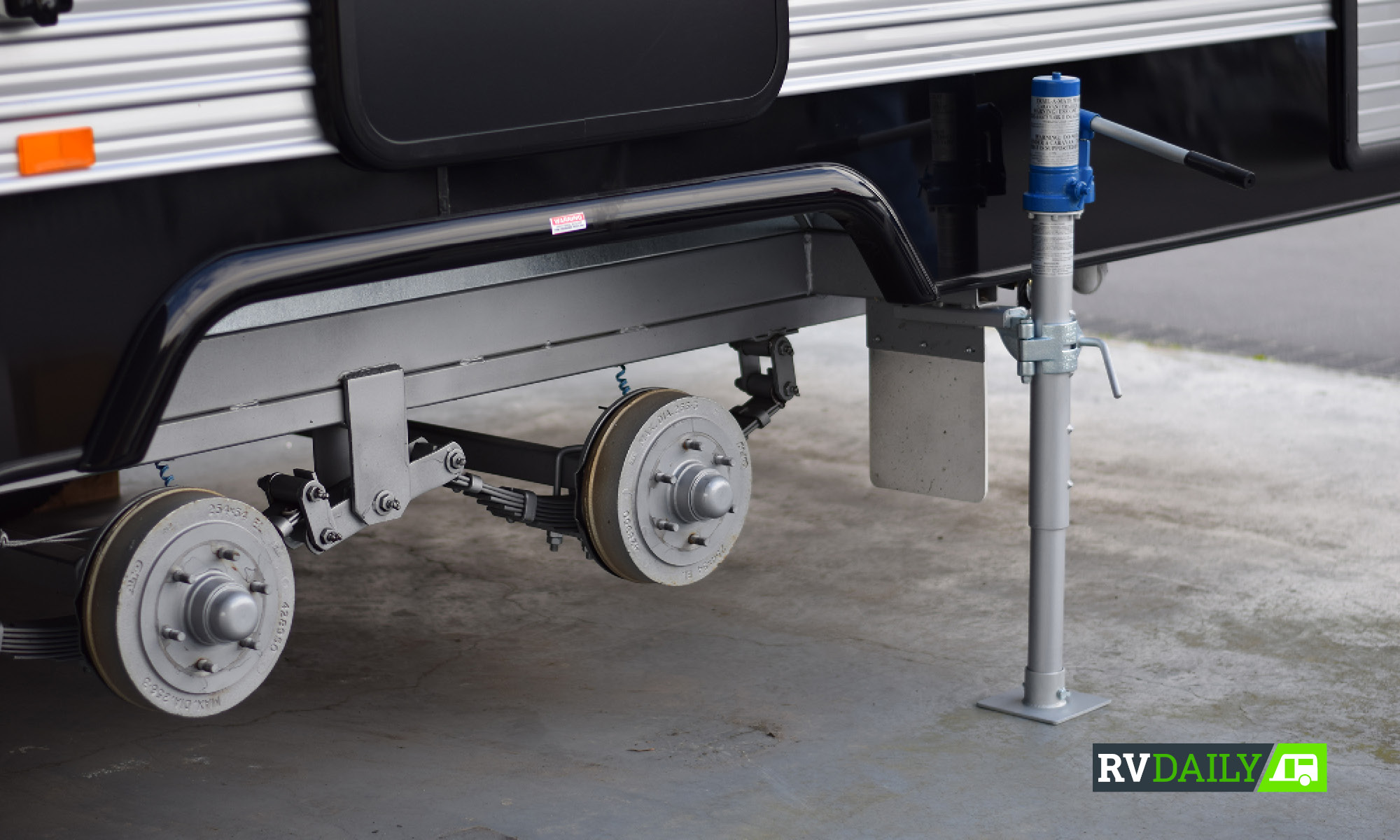

Mkii Lifting A Big Van2

A caravan jack must also:

  • When on a firm base, be low enough to engage a locating recess, when any tyre is fully deflated
  • Have sufficient travel, to enable a fully inflated tyre to replace that tyre

Allowance must be made for the suspension droop when the caravan is raised.

Allowance must be made for the probability that the tyres(s) on one side of the caravan will be loaded greater than on the other side. Typically, this may be around 10 percent.

A conservative assumption must be made on the actual Ball Loading. It is of course much more preferable to have had the Ball Loading measured, for the particular loading of the caravan.

While a typical caravan may have a Ball Loading of around 10 percent of the actual mass of the loaded caravan, the actual Ball Loading may only be around five percent.

The jack must be able to lift the van to allow a fully inflated tyre back under

Screen Shot 2020 04 23 At 2.44.12 Pm

The relationship between a jack’s Load (lifting force) and its Travel, is a basic physics topic of Moments … which is Force x Distance.

With the ball as the pivot, it is a “balance” or a “compromise” – for any given effective Load (M) times its Distance (LM) from the pivot – and the jack’s available Force (J) times its Distance (LJ) from the pivot.

The jack’s available Travel (extended length minus retracted length) must be sufficient to enable a tyre to be safely replaced.

M  x  LM  =  J  x  LJ

Screen Shot 2020 04 23 At 2.44.30 Pm

The greater the LJ Distance, the lesser the J Force can be … and vice-versa.

Caution: Never rely on a jack … tragic accidents have occurred when a jack has failed, or has slipped. It is most important to practice changing a wheel/tyre before heading off on a trip, so that you know exactly what to do if you have the misfortune of getting a punctured tyre on your travels.

  • Do you know where everything you will need is stored … and how to use everything?
  • Does the wheel brace fit the wheel nuts, and do you have the strength to loosen the tightened nuts (especially if fitted using a tyre shop’s rattle gun)?
  • Does the top of the jack correctly suit the jacking points on the underside of the caravan chassis rails?
  • Does the jack have sufficient lifting capacity (Load Rating)?
  • Does the jack have sufficient travel … and is the minimum height low enough?

Always carefully read the warning notice and operating instructions supplied with the jack.

If something is not clear to you, contact the manufacturer for clarification.

Annotation 2020 04 23 145551

Typical (Conservative) Example:

Total mass of caravan: 2000kg

Ball loading: 100kg (5 percent of Total Mass)

Therefore effective Load = 1900kg

Heavier side of caravan M: 1000kg

Lighter side of caravan: 900kg

LM = 2m

Therefore M x LM = 2000kg.m

Therefore J x LJ must equal (or exceed) 2000kg.m

If LJ is 3m, J must exceed 667kg

If LJ is 4m, J must exceed 500kg

Annotation 2020 04 23 145743

And now you know how to safely jack your caravan.
